Ceiling Dome Design Systems: The Expert Guide to EPS Hard-Coat Architectural Domes and Ceiling Medallions

Decorative Architectural Products ceiling dome and medallion systems are custom architectural ceiling elements fabricated from high-density EPS foam encapsulated in polyurea elastomeric hard coat. The catalog consists of two product families:

• Ceiling Domes (CD01–CD16): Shallow-relief to full-depth oval and elliptical recessed dome elements. Domes project into the ceiling plane, creating a visually recessed architectural sky within the room. Available in 16 standard profiles from simple smooth ovals (CD05–CD07) to deeply relief-carved shells (CD01–CD04) to elaborately detailed ornamental forms (CD08–CD16). All profiles available in any custom size.

• Ceiling Medallions (CM19–CM30): Flat or lightly raised ornamental rosette elements applied to the ceiling surface, centered on a light fixture or chandelier. Medallions range from simple concentric ring profiles (CM23, CM24) to elaborate multi-layer compositions with acanthus leaf, egg-and-dart, and classical motif details (CM25, CM26). Octagonal and diamond formats available (CM29, CM30).

Every component is encapsulated in polyurea hard coat applied by Graco H-XP2 Reactor at 15-mil DFT — providing surface hardness comparable to quality plaster, zero moisture vapor transmission, and UV resistance of 2,000+ hours per ASTM G154.

Complete Product Catalog

Ceiling Domes — 16 Profiles (CD01–CD16)

Ceiling Medallions — 12 Profiles (CM19–CM30)

Finish Options

Color: standard Classic White, Warm Off-White, Limestone Cream, Gray Stone — or custom match to Benjamin Moore, Sherwin-Williams, RAL, or Pantone. Multi-tone finishing (base + recess accent) strongly recommended for ornamental profiles CM22, CM25–CM30 and domes CD11–CD16.

Engineering Specifications

EPS Hard-Coat vs. Alternatives

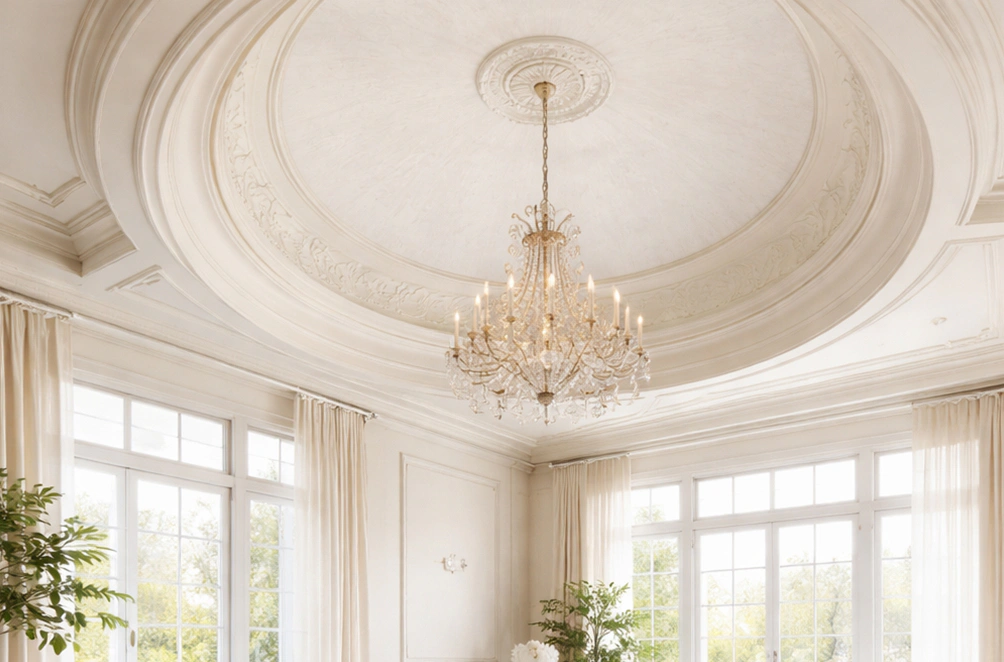

• Formal Dining Rooms: Dome centered over dining table with medallion at chandelier point — the single highest-impact ceiling treatment in residential design. CD11–CD14 with CM22 or CM28 in travertine finish.

• Entry Foyers: Dome over entry chandelier position signals architectural intention from the threshold. Even a simple CD05–CD07 transforms a generic entry into an arrival event.

• Hotel Suites and Hospitality Rooms: Dome over bed position creates a canopy effect that guests immediately register as luxury. CD08–CD10 in warm off-white with multi-tone recess are the standard hospitality specification.

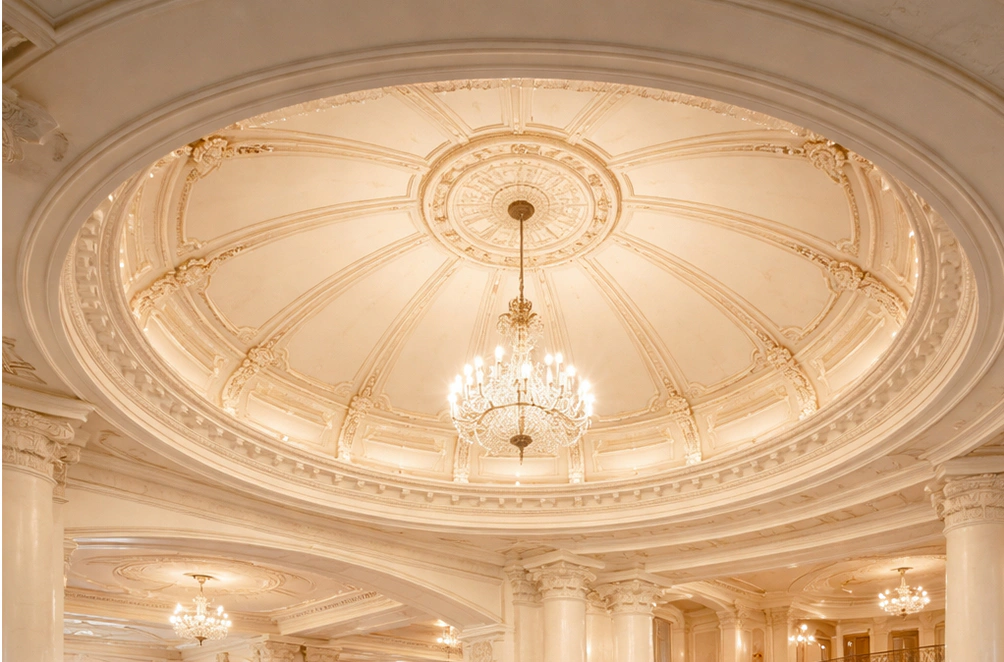

• Hotel Lobbies and Grand Entries: Large-format domes (CD14–CD16) in custom sizes up to 12+ feet across, with elaborate medallions (CM25–CM30), are the signature ceiling treatment for boutique hotel and resort lobby renovations.

• Home Theaters: Domes at the ceiling center improve acoustic diffusion — the curved surface breaks up flat ceiling reflections that degrade sound quality — while creating the immersive visual environment a dedicated media room requires.

• Libraries and Studies: Medallions (CM19–CM22) with coordinated crown molding systems create the contained, focused ceiling character that classically associates with rooms of serious intellectual work.

• Historic Restoration: Any historical dome or medallion profile can be reproduced by Decorative Architectural Products’ 5-axis CNC router and 7-axis robotic arm from architectural drawings or physical templates — at a fraction of the cost of traditional plaster reproduction.

1. Mark exact center point of ceiling. Verify with laser level. For domes recessed into the ceiling plane, prepare the ceiling opening to the specified diameter per the CAD plan.

2. Domes: Apply PL Premium adhesive (foam-rated) to the dome flange perimeter. Set dome into ceiling opening. Secure flange to ceiling framing with 2″ finishing screws at 12″ on-center. For surface-mount domes, apply adhesive to back and press to ceiling surface; fasten through perimeter into framing.

3. Medallions: Apply PL Premium in S-pattern to medallion back. Press to ceiling surface at center point. Nail through medallion at 4 points into framing. Align center hole with light fixture electrical box.

4. Caulk all joints — dome flange to ceiling, medallion edge to ceiling surface — with paintable latex caulk. Tool smooth. Cure 4 hours minimum before touch-up paint.

5. Apply touch-up paint from Decorative Architectural Products touch-up kit. For full painting, use water-based interior latex only.

CRITICAL: Never use oil-based adhesive, paint, or primer on any EPS component. Oil-based solvents dissolve EPS foam. Water-based products only throughout installation.

Engineer Field Notes

• Dome sizing is the most critical design decision. As a general rule, dome diameter should be 40–60% of the room’s shorter dimension for a centered single dome. A dome that is too small looks decorative; a dome correctly sized looks architectural.

• Medallion diameter should be 8–12 inches larger than the light fixture canopy diameter. A medallion that is barely larger than the canopy looks like an afterthought. One that frames the fixture with generous margin looks intentional.

• Always coordinate dome and medallion positions with the light fixture electrical box location before ordering. Moving an electrical box after dome installation is an avoidable expense.

• Multi-tone finishing doubles the visual impact of any ornamental dome or medallion. Profiles CM25–CM30 and CD14–CD16 specified in single-color white lose significant detail at ceiling height. A two-tone finish — base white plus cream or gold in carved recesses — makes the relief read clearly from floor level.

• For ceiling heights above 12 feet, always specify a deeper relief dome profile (CD11–CD16). Shallow-relief domes disappear visually at high ceiling heights — the shadow contrast that defines the dome form requires depth proportional to viewing distance.

Economic Analysis

Economic Buyer — Developer, HOA Board, Builder
Dome and medallion cost 75–80% below cast plaster. Zero structural reinforcement requirement. Installation in 1–3 hours per location versus half-day or more for plaster. Same CAD model replicable across any number of identical rooms — consistent quality at scale without premium. 10-year warranty provides contractual quality assurance no plaster specification can match.

Technical Buyer — Architect, Interior Designer, Contractor
16 dome profiles and 12 medallion profiles covering the full range of interior applications. Any custom size at no tooling upcharge — CNC produces any diameter within the machine range. ASTM E84 Class A flame spread documentation available for permitting. All components delivered labeled with installation placement reference. CAD coordination for electrical box and lighting positions before production begins.

End User — Homeowner, Hotel Guest, Occupant
The dome overhead will look exactly the same in 15 years as today — no cracking, no yellowing, no maintenance required. Guests and visitors consistently identify EPS hard-coat domes and medallions as plaster or cast stone. Standard latex paint accepted for any future color change. Lightweight construction poses no structural concern.
